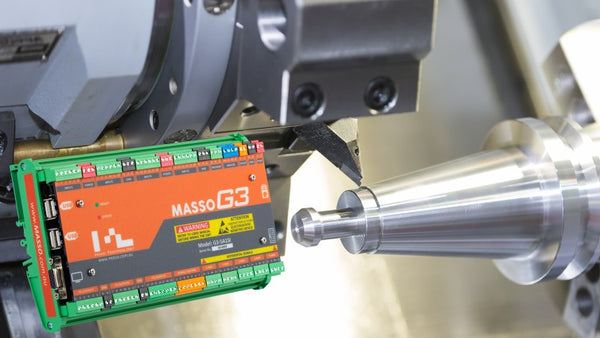

MASSO G3 CNC Mill/Router Controller - 5-Axis
We are the official distributors of the MASSO Controller in Canada/US! The idea for this radical design came from a challenge while building CNC machines. The PC based system was too complex to setup, further there were a lot of hardware and software compatibility issues. The PC based system would periodically crash.
That's when the MASSO controller came into being. A dedicated embedded CNC controller was designed from the ground up on a custom-built hardware platform that included all the inputs and outputs to control machine axis, spindles, accessories, etc. All the required hardware is built into the system and the user only needs to connect an monitor screen through the built-in VGA port and a standard USB keyboard. With a unique dedicated architecture, the machine can be controlled without requiring any dedicated PC.
That's when the MASSO controller came into being. A dedicated embedded CNC controller was designed from the ground up on a custom-built hardware platform that included all the inputs and outputs to control machine axis, spindles, accessories, etc. All the required hardware is built into the system and the user only needs to connect an monitor screen through the built-in VGA port and a standard USB keyboard. With a unique dedicated architecture, the machine can be controlled without requiring any dedicated PC.
A simple and standalone Mill/Router CNC Controller with fully integrated hardware and software specially designed to run CNC machines independently of a PC. No need to worry about installing drivers or motion cards, just wire the MASSO to your motor drives and enter calibration values to start machining.
Built-in WiFi Connectivity – MASSO G3 comes with Wi-Fi hardware and software to easily transfer gcodes files to the machine and monitor machine/job status through WiFi.
Built-in WiFi Connectivity – MASSO G3 comes with Wi-Fi hardware and software to easily transfer gcodes files to the machine and monitor machine/job status through WiFi.
What you get in this package is:
- MASSO G3 CNC Mill/Router Controller - 5-Axis
- 4 Times faster at loading gcode files
- More memory for additional software features
- 4 USB ports - no need for USB hubs - connect keyboard, mouse, touch screen and pen drive directly
- All 5 axis now have differential signal outputs
- WiFi hardware and software included - transfer G-code using WiFi and monitor your job
- Future expandability - Ability to directly connect smart motor drives
- Color-coded Connectors - Connectors are color-coded for easy identification
- Built-in Power & Ground Terminals - No need for connecting external terminal blocks for power or ground signals
- Same size and mounting profile as of MASSO Gen 2 controllers
- Support for 100 tools
- Better noise immunity
MASSO Mill Software Features
- Embedded real-time OS eliminating issues such as VIRUS attacks and system failures or crashes
- All software is pre-installed and no need for drivers or control software
- Onsite upgradable through USB. Any future software revisions are free to download and upgrade
- Machine and job status visualization in real-time
- Easy user interface
- Dedicated system requiring no PC
You can learn all about the Masso Controller at https://www.youtube.com/channel/UCU1S9ofTFCochJOwrSqJLZw/featured
